ClampIR - ATR Attachment Kit
ClampIR

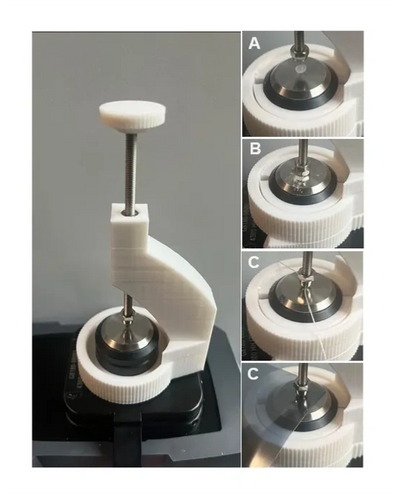

Tailor-made attachment designed for use with the 4300 handheld FTIR spectrometer's ATR accessory. It serves as a conventional handheld presser, simplifying the process of conducting pressing-ATR tests. With its easy assembly and disassembly, along with switchable tips for various types of samples, ClampIR enhances the versatility and ease of your handheld spectroscopic analysis.
Dip Tip
Figure A: The concave area of this tip is perfect for holding samples like resins, allowing for a more controlled and contained application.
Flat Tip
Figure B: The flat surface of this tip is designed to handle powder-type samples, allowing more surface area coverage over the ATR crystal.
Acorn Tip
Figure C: This design is most effective, offering the highest precision in pressing and minimal twisting. Its unique shape is ideally suited for samples like fibers for delicate operation.
